2026 Mazda CX-30 Out to Corona, NY (in Queens)
The 2026 Mazda CX-30 is a compact crossover SUV designed with a consistent mechanical foundation across all trims. The model lineup includes multiple configurations, all equipped with standard i-Activ AWD and a SKYACTIV-Drive 6-speed automatic transmission. The 2026 Mazda CX-30 is available in both naturally aspirated and turbocharged engine variants, offering distinct performance outputs within the same structural platform. The model is engineered to balance compact exterior dimensions with a structured chassis, defined suspension system, and a full suite of driver-assistance technologies.
Engine Output and Performance Specifications
The 2026 Mazda CX-30 uses two SKYACTIV-G® engine options. The standard engine is a 2.5-liter DOHC 16-valve four-cylinder unit with variable valve timing. This engine produces 186 horsepower at 6,000 rpm and 186 lb-ft of torque at 4,000 rpm. The compression ratio is listed at 13.0:1, and the engine uses advanced direct injection for fuel delivery. The bore and stroke measure 89.0 mm by 100.0 mm.
Turbocharged models use the SKYACTIV-G® 2.5 Dynamic Pressure Turbo engine. This engine produces up to 250 horsepower at 5,000 rpm and up to 320 lb-ft of torque at 2,000 rpm when using premium fuel. The turbocharged configuration has a compression ratio of 10.5:1. The turbo engine operates with a lower redline of 6,200 rpm compared to 6,500 rpm for the naturally aspirated version.
All configurations use a 6-speed automatic transmission with manual-shift mode and Sport mode. The gear ratios differ slightly between naturally aspirated and turbocharged models, with final drive ratios of 4.367 for non-turbo models and 3.841 for turbo models. These ratios support a balance between acceleration and highway efficiency.
Drivetrain Architecture and AWD Integration
Every 2026 Mazda CX-30 model includes i-Activ AWD as standard equipment. This system monitors driving conditions and adjusts torque distribution between the front and rear axles to maintain traction. The drivetrain integrates with traction control and stability systems to support vehicle handling during acceleration and cornering.
Additional mechanical systems include Off-road Traction Assist and Hill Launch Assist. These features help manage wheel slip and maintain control during low-traction conditions and incline starts. Dynamic Stability Control and the Traction Control System operate in coordination with the AWD system to regulate wheel speed and braking force.
Fuel Economy and Capacity Metrics
The 2026 Mazda CX-30 uses a 12.7-gallon fuel tank. Fuel economy ratings for the naturally aspirated engine are listed at 24 miles per gallon in the city, 31 miles per gallon on the highway, and 27 miles per gallon combined. Turbocharged models are rated at 22 miles per gallon in the city, 30 miles per gallon on the highway, and 25 miles per gallon combined.
These values reflect the performance difference between engine configurations and the presence of standard AWD across all trims. The fuel system uses advanced direct injection technology, which contributes to combustion efficiency and controlled fuel delivery.
Disclaimer: *Based on EPA estimates for 2026 Mazda CX-30 2.5 S models, 24 city/31 highway/27 combined MPG. 2026 Mazda CX-30 2.5 Turbo Premium Plus shown, 22 city/30 highway/25 combined MPG. Actual results will vary.
Chassis Design and Suspension Components
The 2026 Mazda CX-30 uses a MacPherson® strut front suspension with a stabilizer bar. The rear suspension uses a torsion beam design. This configuration supports predictable handling characteristics and structural rigidity. The steering system is an electric power-assisted rack-and-pinion setup with a steering ratio of 15.9.
Braking hardware includes ventilated front disc brakes and solid rear disc brakes. The braking system integrates Anti-lock Brake System, Electronic Brakeforce Distribution, and Brake Assist. These systems regulate braking pressure and maintain control during emergency braking conditions.
The turning circle measures 34.4 feet curb-to-curb and 35.3 feet wall-to-wall. The braking system also includes an electronic parking brake. The curb weight ranges from 3,295 pounds to 3,527 pounds, depending on trim and equipment level.
Exterior Dimensions and Structural Proportions
The 2026 Mazda CX-30 has an overall length of 173.0 inches and a width of 70.7 inches. The height measures 61.4 inches with the shark-fin antenna and 62.8 inches with the roof rails configuration. The wheelbase is 104.4 inches, which supports interior space distribution and ride stability.
Ground clearance is listed at 8.0 inches. The front and rear tread widths are 61.5 inches. These dimensions define the 2026 Mazda CX-30 as a compact crossover with moderate ground clearance for light off-road capability and urban driving conditions.
Wheel and Tire Specifications
The 2026 Mazda CX-30 is equipped with either 16-inch or 18-inch aluminum alloy wheels. Base configurations use 16 x 6.5-inch wheels paired with 215/65R16 all-season tires. Higher trims use 18 x 7-inch wheels with 215/55R18 all-season tires. A temporary spare tire is included across all trims.
Wheel finishes include silver metallic and black metallic, depending on trim level. The tire specifications are designed to balance grip, durability, and ride comfort across different driving conditions.
Interior Dimensions and Cargo Capacity
The 2026 Mazda CX-30 provides seating for five passengers. Front headroom measures 38.1 inches, with slight variation depending on equipment. Front legroom is 41.7 inches, while rear legroom is 36.3 inches. Shoulder room measures 55.6 inches in the front and 53.6 inches in the rear.
Cargo capacity is 20.2 cubic feet behind the rear seats. When the rear seats are folded, cargo capacity increases to 45.2 cubic feet. The rear seatback uses a 60/40 split configuration with one-touch fold-down capability.
Seating Configuration and Interior Materials

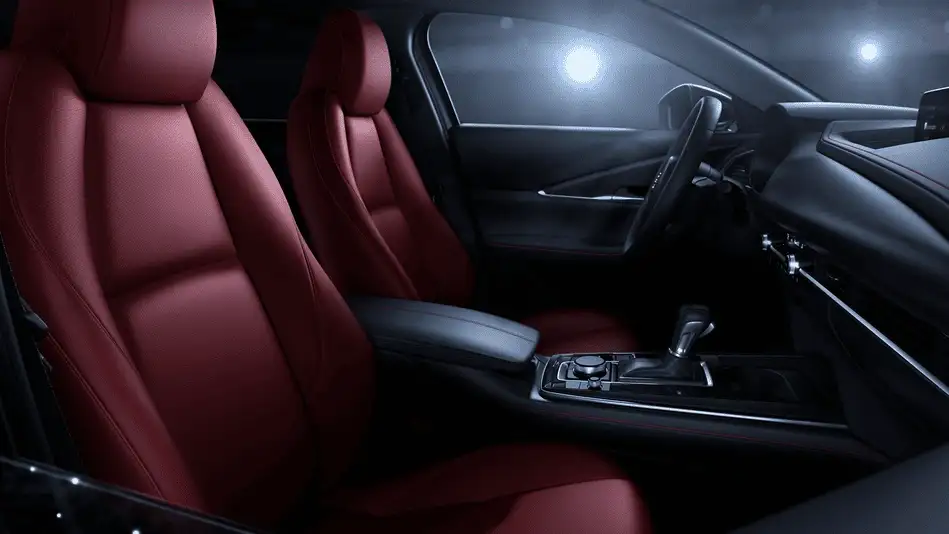

The 2026 Mazda CX-30 includes multiple seating material options across trims. Base models use cloth seating in black. Higher trims include leatherette, leatherette with cloth inserts, synthetic suede combinations, and full leather seating in black, white, or red.
The driver’s seat is available with 8-way power adjustment, lumbar support, and memory positioning. Lower trims include a 6-way manual driver seat with a seat lifter. The front passenger seat uses a 4-way manual adjustment.

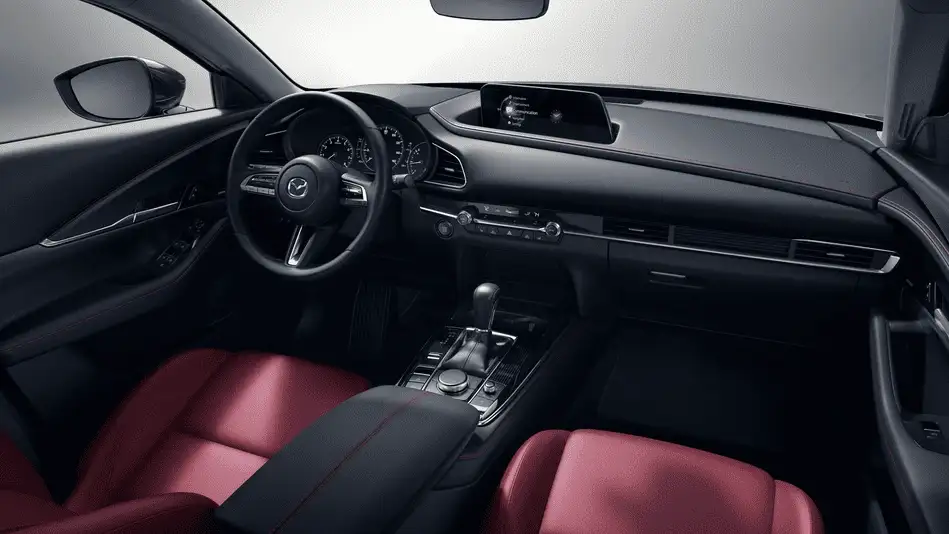

Heated front seats are available with three adjustment levels. Interior trim materials include silver paint finishes, gun metallic accents, piano black surfaces, and leather-like dashboard panels. Additional interior elements include a leather-wrapped steering wheel on higher trims and paddle shifters on select configurations.
Infotainment System and Connectivity Features
The 2026 Mazda CX-30 uses the Mazda Connect™ infotainment system. The standard display is an 8.8-inch full-color screen. Higher trims include a 10.25-inch display with touchscreen capability for Apple CarPlay® and Android Auto™.
Apple CarPlay® and Android Auto™ are available in both wired and wireless configurations, depending on trim level. The system includes Bluetooth® hands-free phone and audio functionality, AM-FM radio, and available HD Radio.
Audio system configurations include a 6-speaker setup, an 8-speaker system with Mazda Harmonic Acoustics, and a Bose® 12-speaker system with Centerpoint® 2 and AudioPilot® 2 technologies. USB Type-C audio inputs are included, along with a Qi wireless charging pad on select trims.
Connected Services and Digital Integration
Mazda Connected Services provide remote access and vehicle monitoring functions. These include remote engine start, remote door lock and unlock, remote hazard light activation, and vehicle status alerts. The system also supports vehicle health reports, push notifications, and recall notifications.
Navigation services include vehicle finder, send-to-car functionality, and map updates via a connected system. The 2026 Mazda CX-30 also includes Automatic 911 dialing and roadside assistance support. Alexa Built-In is available on select trims, providing voice-controlled functionality for infotainment and vehicle features.
Instrumentation and Driver Interface
The instrument cluster includes a 7-inch LCD display that provides driving information. This display shows speedometer data, odometer readings, trip meter information, outside temperature, distance-to-empty, and fuel economy metrics.
Additional display information includes system alerts, door and liftgate warnings, and i-Activsense status indicators. A digital clock and fuel gauge are also included. Higher trims include an Active Driving Display that projects information onto the windshield along with Traffic Sign Recognition functionality.
Safety Systems and Driver Assistance Technology
The 2026 Mazda CX-30 includes a comprehensive set of safety systems. Standard features include Blind Spot Monitoring, Rear Cross Traffic Alert, Lane Departure Warning System, Lane Keep Assist, and Mazda Radar Cruise Control with stop-and-go functionality.
The vehicle also includes Smart Brake Support, Driver Attention Alert, Rear Seat Alert, and Vehicle Exit Warning. A rearview monitor is standard across all trims. Additional available systems include a 360-degree view monitor, front and rear parking sensors, Cruising and Traffic Support, Smart Brake Support Reverse, and Smart Brake Support Rear Crossing.
The airbag system includes advanced dual front airbags, front and rear side-impact airbags, side-impact air curtains with rollover protection, and driver and passenger knee airbags. The 2026 Mazda CX-30 also includes seatbelt pretensioners with force limiters and load limiters, LATCH anchors for child seats, and an engine immobilizer anti-theft system.
Visit Garden City Mazda Out to Corona, NY (in Queens)
We invite you to explore the 2026 Mazda CX-30 through a scheduled test drive to experience its SKYACTIV-G® engine performance, standard AWD system, and integrated driver-assistance technologies. During your visit, you can evaluate the differences between the naturally aspirated and turbocharged configurations, including power output and drivetrain response. Our team will guide you through the infotainment system, connectivity features, and safety technologies to provide a clear understanding of the vehicle’s capabilities. You can also review interior configurations, seating materials, and cargo flexibility to determine suitability for your driving needs. Visit Garden City Mazda out to Corona, NY (in Queens), to arrange your test drive and examine the 2026 Mazda CX-30 in detail.
