2026 Mazda CX-5 Out to Corona, NY (in Queens)
The 2026 Mazda CX-5 is equipped across all trims with a SKYACTIV-G® 2.5 DOHC 16-valve four-cylinder engine. This engine incorporates direct fuel injection, cylinder deactivation, and i-STOP technology to manage efficiency and combustion cycles. It produces 187 horsepower at 6,000 rpm and 186 lb-ft of torque at 4,000 rpm. The engine operates with a compression ratio of 13.0:1 and uses SAE 0W-20 engine oil. The redline is set at 6,500 rpm, and the engine is constructed with an aluminum alloy block and cylinder head.
The 2026 Mazda CX-5 supports regular unleaded fuel rated at 87 octane or higher, with compatibility for higher octane fuel if available. The fuel system uses direct injection to optimize fuel delivery. The EPA-estimated fuel economy is rated at 24 miles per gallon in city driving, 30 miles per gallon on the highway, and 26 miles per gallon combined. The fuel tank capacity measures 15.3 gallons, supporting extended driving range under standard conditions.
Disclaimer: *The new Mazda CX-5 has an EPA-estimated fuel economy rating of 24 MPG city, 30 MPG highway and 26 MPG combined. Actual mileage will vary in real-world driving.
Transmission Engineering and Drivetrain Control
Mazda pairs the engine with a SKYACTIV-Drive six-speed automatic transmission. This transmission includes a manual shift mode, allowing the driver to select gears directly when needed. The gear ratios are calibrated as follows: first gear at 3.552, second at 2.022, third at 1.452, fourth at 1.000, fifth at 0.708, sixth at 0.599, and reverse at 3.893. The final drive ratio is 4.624.
All trims include Mazda Intelligent Drive Select, which provides Normal, Sport, and Off-road modes. These modes adjust throttle response and transmission behavior based on driving conditions. The 2026 Mazda CX-5 uses a full-time i-ACTIV All-Wheel Drive system. This system distributes torque between the front and rear wheels based on traction requirements, improving grip during acceleration and cornering.
Structural Framework and Suspension Configuration
The 2026 Mazda CX-5 uses a unibody construction with a ring structure that supports rigidity and weight distribution. The front suspension uses an independent MacPherson® strut design with coil springs and a stabilizer bar. The rear suspension uses an independent multi-link configuration with coil springs and a stabilizer bar. This setup supports predictable handling characteristics and controlled body movement.
The steering system uses rack-and-pinion geometry with Electric Power Assist Steering. The overall steering ratio is 14.1:1, and the steering wheel requires 2.75 turns lock-to-lock. The turning circle measures 18.4 feet curb-to-curb and 19.7 feet wall-to-wall. These specifications contribute to maneuverability in urban and confined spaces.
Braking Systems and Stability Technologies
The braking system includes ventilated front disc brakes measuring 12.9 inches and solid rear disc brakes measuring 11.8 inches. Anti-lock braking is standard and works with Electronic Brakeforce Distribution and Brake Assist. The 2026 Mazda CX-5 also includes an electronic parking brake.
The Dynamic Stability Control and Traction Control System are integrated to manage wheel slip and maintain directional stability. Hill Launch Assist prevents rollback during incline starts. G-Vectoring Control Plus adjusts engine torque and braking force during cornering to maintain vehicle balance. These systems function together to support consistent braking performance and controlled handling.
Exterior Dimensions and Functional Design Elements
The 2026 Mazda CX-5 measures 184.6 inches in overall length. The width is 73.2 inches without mirrors and 81.8 inches with mirrors extended. The overall height is 66.7 inches, and the wheelbase measures 110.8 inches. Front track width is 63.2 inches, and rear track width is 64.0 inches. Ground clearance ranges from 8.0 inches to 8.2 inches, depending on trim.
Standard exterior features include LED headlights with auto on and off functionality, auto-leveling capability, and daytime running lights. High Beam Control adjusts headlight intensity based on surrounding traffic conditions. Rain-sensing windshield wipers and a rear intermittent wiper with a washer are also included. The rear roof spoiler is body-colored across all trims.
Higher trims add functional elements such as roof rails, windshield wiper de-icer, and automatic power-folding side mirrors. Premium and Premium Plus trims include piano black lower bumper trim, rocker molding, and wheel arch accents. The Premium Plus trim adds an Adaptive Front-Lighting System, which adjusts the direction of the headlights based on steering input.
Wheel and Tire Configurations
The 2026 Mazda CX-5 offers two primary wheel and tire configurations. Lower trims use 17 x 7J aluminum alloy wheels paired with P225/65R17 all-season tires. Higher trims use 19 x 7J aluminum alloy wheels paired with P225/55R19 all-season tires. Wheel finishes vary by trim and include gray metallic and black metallic finishes. A temporary spare tire is included across all models.
Interior Dimensions and Passenger Accommodation
The interior of the 2026 Mazda CX-5 supports five passengers. Passenger volume measures up to 106.5 cubic feet, depending on configuration. Front headroom measures up to 39.7 inches without a sunroof, while rear headroom measures up to 40.2 inches. Front legroom measures 41.7 inches, and rear legroom measures 39.9 inches. Shoulder room measures 57.5 inches in the front and 55.6 inches in the rear. Hip room measures 55.2 inches in the front and 52.4 inches in the rear.

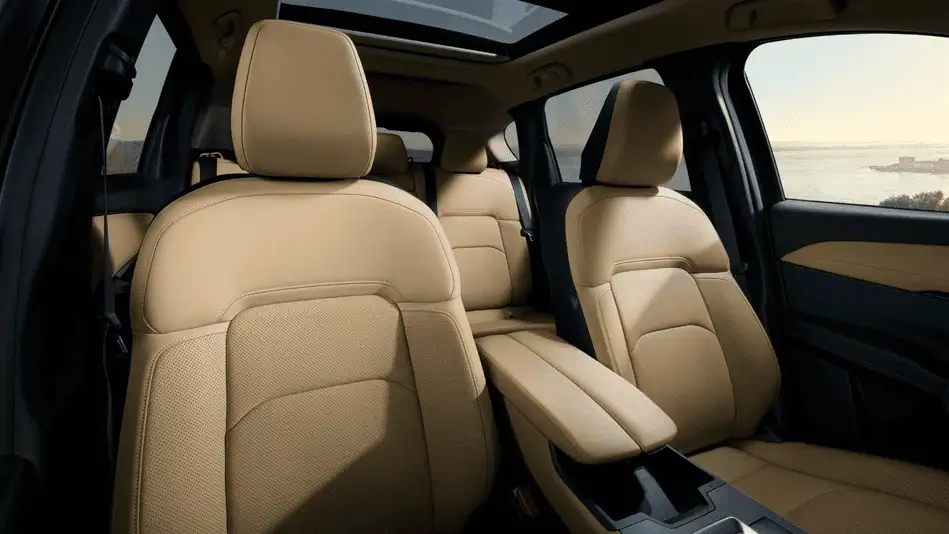

The rear seat uses a 40-20-40 split design with reclining capability. This allows flexible passenger and cargo configurations. Rear knee clearance measures 5.2 inches. Seat height and positioning are designed to provide a consistent driving position with clear forward visibility.
Seating Materials and Cabin Features by Trim
The base 2.5 S trim uses cloth seating surfaces. The Select and Preferred trims use leatherette with microsuede inserts. Premium and Premium Plus trims use leather seating surfaces. The driver seat is manually adjustable in lower trims and becomes a 10-way power-adjustable seat with lumbar support and memory function in higher trims. The passenger seat transitions from manual adjustment to a six-way power-adjustable configuration in Premium and above.
Heated front seats are included from the Preferred trim onward. Heated rear seats and ventilated front seats are available in Premium and Premium Plus trims. A heated steering wheel is included from the Preferred trim upward. Additional interior features include dual-zone automatic climate control, rear air vents, and an auto-dimming frameless rearview mirror.
Cargo Capacity and Practical Measurements
The 2026 Mazda CX-5 provides a cargo volume of 33.7 cubic feet with all seats upright. When the second row is folded, cargo volume increases to 66.5 cubic feet. Cargo area height from floor to roof measures 33.7 inches. Cargo length behind the second row measures 39.1 inches. With the rear seats folded, the cargo length extends to 75.0 inches at the floor.
The rear tailgate opening width measures 42.8 inches, and the opening height measures 30.7 inches. The vehicle includes a power rear liftgate in mid-level trims and a hands-free power liftgate in the Premium Plus trim. These features support loading and unloading efficiency.
Infotainment Systems and Digital Interfaces

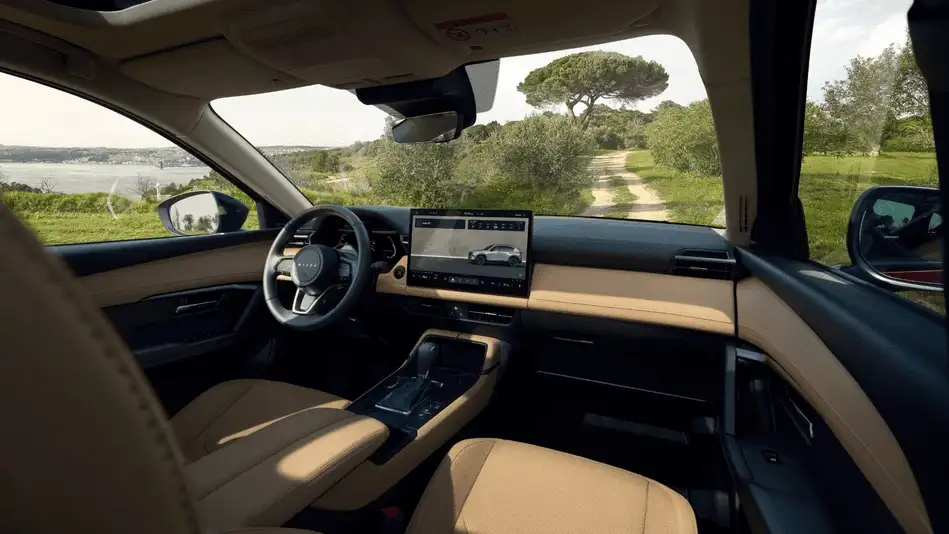

The 2026 Mazda CX-5 includes a 10.25-inch LCD meter display as standard across all trims. The central display measures 12.9 inches in most trims, while the Premium Plus trim includes a 15.6-inch display with touch control. The infotainment system operates through Mazda Connect™ and includes voice control functionality.
Apple CarPlay® and Android Auto™ integration are standard. Wireless integration is available starting from the Select trim. The system includes Bluetooth® hands-free connectivity, HD Radio, and voice-command audio controls. USB Type-C ports are located in the front across all trims, with additional rear ports in higher trims. Wireless phone charging is included from the Select trim onward.
The audio system includes eight speakers in lower trims and a 12-speaker Bose® audio system in Premium and Premium Plus trims. SiriusXM® 360L satellite radio is included in higher trims with a trial subscription period. The system also includes Google built-in capable navigation and voice assistant with a one-year trial.
Driver Information Displays and Visibility Systems
The 2026 Mazda CX-5 provides a standard digital meter display that presents speed, vehicle status, and system alerts. Higher trims include a full-color windshield-projected Active Driving Display. This display projects information such as speed and navigation prompts into the driver’s line of sight.
Visibility systems include a rearview camera with dynamic guidelines and a tow hitch guide. Front and rear parking sensors are standard across all trims. The Premium Plus trim includes a 360-degree view monitor with multiple viewing angles, including underfloor and parking views.
Safety Systems and Driver Assistance Technologies
The 2026 Mazda CX-5 includes a comprehensive set of safety and driver assistance systems. Standard systems include Blind Spot Monitoring, Lane Departure Warning, Lane-keep Assist, and Emergency Lane Keeping. Emergency Lane Keeping integrates Blind Spot Assist, Road Keep Assist, and head-on traffic avoidance functions.
Mazda Radar Cruise Control with Speed Limit Assist is standard across all trims. Traffic Sign Recognition displays detected signs to the driver. Driver Attention Alert monitors driver behavior and provides alerts when necessary. Vehicle Exit Warning alerts occupants to approaching vehicles when exiting.
Smart Brake Support includes forward collision mitigation, Turn-Across Traffic detection, and head-on collision mitigation. Rear Smart Brake Support includes rear cross traffic alert and pedestrian detection. Additional systems include Distance and Speed Alert, Rear Seat Alert, and tire pressure monitoring.
Higher trims add advanced features such as Driver Monitoring, which tracks driver attention through interior sensors. Front Cross Traffic Alert with braking is included in Premium Plus. Cruising and Traffic Support with Lane Change Assist and Unresponsive Driver Support is also included in the highest trim.
Electrical Systems and Additional Mechanical Specifications
The 2026 Mazda CX-5 uses a 12-volt electrical system with a 100-amp alternator and an S-95 battery. The ignition system uses direct coil-on-plug electronic ignition. The starter is rated at 1.4 kilowatts. These components support consistent engine start performance and electrical system reliability.
The drivetrain includes all-wheel drive across all trims. The braking system includes standard anti-lock braking with Electronic Brakeforce Distribution. The vehicle includes an engine immobilizer anti-theft system and advanced airbag systems covering front, side, curtain, and knee positions.
